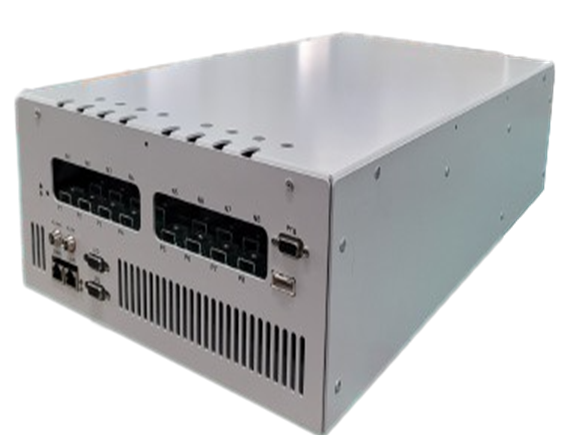

Standalone System

Input Power Supply Single Phase 380Vac 50/60Hz
Charging Voltage 1.5 ~ 5V (4.2V)
Discharging Voltage 2.5 ~ 5V (4.2V)
Voltage Accuracy ±0.05%@F.S
Current Accuracy ±0.1%@F.S
Channel Configuration by Current 50A 8Channel
100A 4Channel
200A 2Channel
300A 1Channel
400A 1Channel
Dimension 325mm(L)x140mm(H)x 575mm(D)
Control Mode CC, CC/CV, CP, CP/CV, OCV

Compact type Shelf



Support dedicated EMS(GUI)



Simple cable Connection & Maintenance



Optimized Cooling System



Voltage and Current Resolution of ADC

-      16 bit



Performance Monitoring

    - Voltage, Current, Capacity, Power, Energy



Protection & Safety

- Battery Reverse polarity

- OVP, OCP, OTP, Over Power

- Battery Temperature Monitoring each channel



Can change configuration current capacity by only update Software

- Changeable current capacity : 50A ~ 400A
